Home>oubao products>Magnetic Core Drill

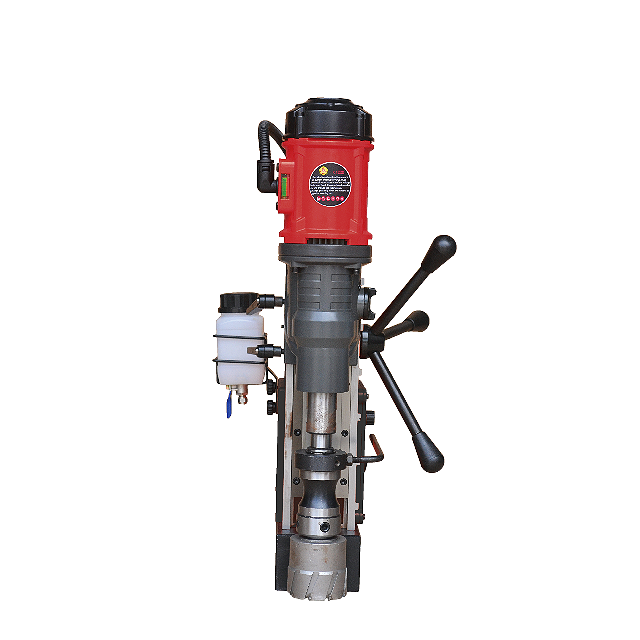

Magnetic Core Drill
Double dovetail groove, long stroke, small size
All die-cast magnesium alloy frame in light weight
Liquid oil
High magnet force
TECHNICAL PARAMETER
 Core drill dia(mm) Twist drill dia(mm)
 Tapping drill dia(mm)
 Rated Voltage(v) Rated Frequency(Hz) Rated Input Power(w) Max attraction(N)
 No-load Speed(rpm) Cutting depth(mm)
 Morse taper
 Stroke(mm)
 Net/Gross Weight(kgs) Packing Weight(cm)
OB-1000A 100
 26 M24
 110/220~ 50-60 2380 14800
 100-125/290/600 40 MT3
 220
 28/32 65*20*40
OB-1200A 120 28 M26
 110/220~ 50-60 2480 15600
 100-135/300/690 50 MT3
 220
 29/33 65*20*40
